Product Description
Twin-lift container spreader can lifting twin 20ft containers at the same time. It made of hanger structure, rotary lock device, guiding device, a telescopic device and hydraulic system , with orientation alignment, automatic opening and locking, automatic telescopic function, in order to work quickly and accurately to container loading and unloading.The sling is provided with a mechanical or hydraulic telescoping mechanism, in20ft to45ft range expansion, in order to adapt to different specifications of container handling requirements.Guide device has a fixed guide plate and belt turning plate two, to achieve the spreader is positioned, with fixed guide spreader used for tire type gantry crane, rail type gantry crane for loading and unloading machinery, and with automatic turning plate (4 of each turning plate can be controlled separately) of the spreader is generally applied in the shore container cranes.
Product Features
Telescopic drive belt instead of chain to reduce noise, weight and maintenance
Safe and easy access to telescopic drive and components due to mono beam design
The twin-lift container spreader is suitable for 20ft,40ft,45ft standard container lift
The twin-lift container spreader is suitable for lifting two 20ft containers
Our container spreader drive by hydraulic system
This new type container spreader is suitable for frequent work place
Technical Parameters
| For Operation With ISO Standard 20' Container | For Operation With ISO Standard 40' Container |
| Rated Lifting Load | 35t | Rated Lifting Load | 40t |
| Self-Weight | 2t | Self-Weight | 3.5t |
| Allowable Load Eccentricity | 10% | Allowable Load Eccentricity | 10% |
| Spring Stroke | 100mm | Spring Stroke | 100mm |
| Ambient Temperature | -20℃~ +45℃ | Ambient Temperature | -20℃~ +45℃ |
| Twistlock Mode | ISO Floating Twistlock, Driven by a Automatic Spring | Twistlock Mode | ISO Floating Twistlock, Driven by a Automatic Spring |
| Flippers Device | No Power, Fixed Flippers | Flippers Device | No Power, Fixed Flippers |
| Application | Portal Crane, Gantry Crane, Crane in the Plant | Application | Portal Crane, Gantry Crane, Crane in the Plant |
Genernal Arrangement

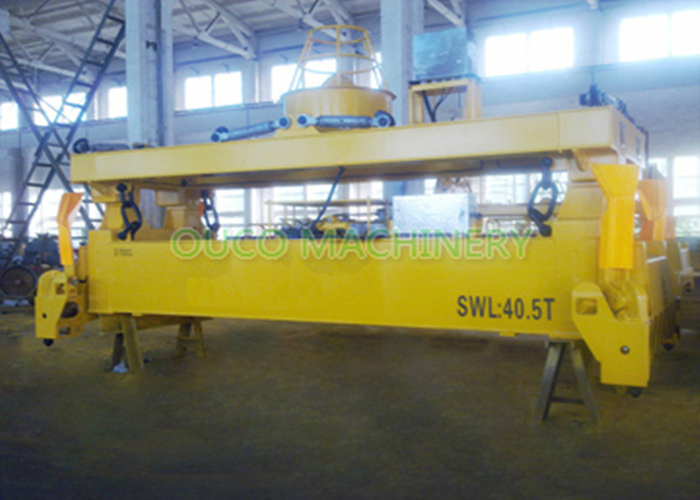

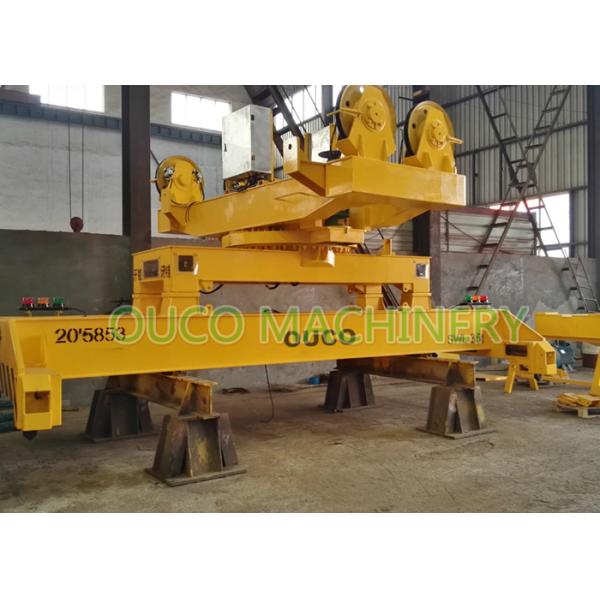

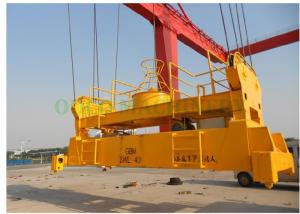

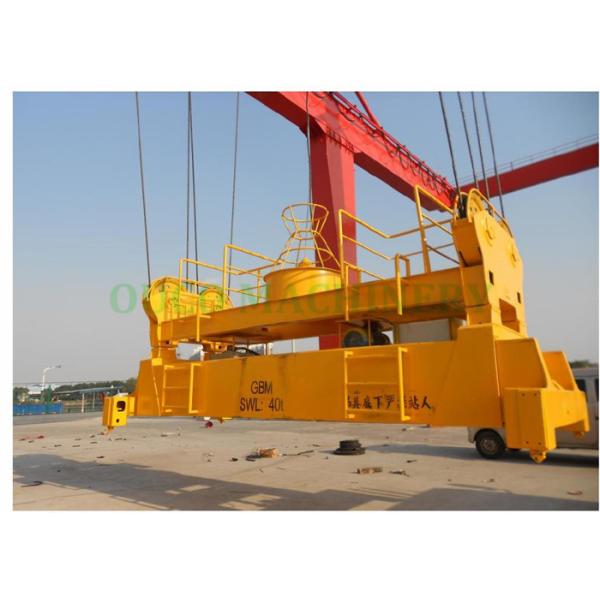

Product Images
Packing & Delivery
For more details, please feel free to contact me as below:
Product Tags:
|
|
Automatic Electro - Hydraulic Container Spreader For 40ft / 20ft Container Images
|
