Long Life Color Customized Gantry Crane Spreader According ISO Standard

  • 1
  • 2

Brand Name : OUCO

Model Number : OUCO-20-CS

Certification : ISO/CE/CCS/BV/ABS

Place of Origin : JIANGSU

MOQ : 1

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 1000 sets per year

Delivery Time : 45 days

Packaging Details : Shipping Container/Wood Crate/nude

Material : Q345B

Lifting capacity : 35-40t

Usage : handling container

Warranty : 12 monthes

Rated loading capacity : 35 T

Type : heavy duty

Contact Now

Long Life Color Customized Gantry Crane Spreader According ISO Standard

Product description:

The semi-automatic spreader is designed for the handling of 20 ft & 40 ft ISO containers with single or double hook jib cranes, in ports or on vessels. The twistlocks are activated by landing and lifting the spreader from the container by the crane operator. No hydraulic or electric systems are needed.

Standard and Heavy Duty Models are available.

Technical specification:

Available in 20` and 40` ISO container spreaders.

Capacity loaded 20` and 40` ISO container spreaders.

Light weight container spreaders

20` container spreader-1360kg (3000lb)

40` container spreader-2268kg (5000lb)

Heavy duty container spreaders

20` container spreader-3084kg (6800lb)

40` container spreader-4128kg (9100lb)

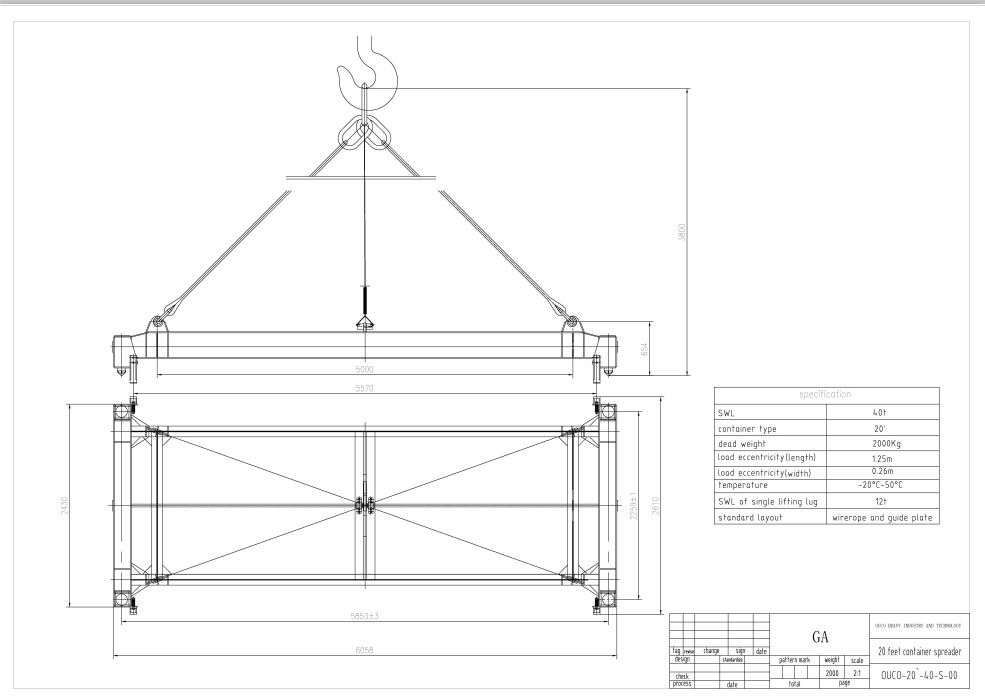

General Arrangement:
Long Life Color Customized Gantry Crane Spreader According ISO Standard

Technical Specifications:

For Operation With ISO Standard 20' Container For Operation With ISO Standard 40' Container
Rated Lifting Load 35t Rated Lifting Load 40t
Self-Weight 2t Self-Weight 3.5t
Allowable Load Eccentricity 10% Allowable Load Eccentricity 10%
Spring Stroke 100mm Spring Stroke 100mm
Ambient Temperature -20℃~ +45℃ Ambient Temperature -20℃~ +45℃
Twistlock Mode ISO Floating Twistlock, Driven by a Automatic Spring Twistlock Mode ISO Floating Twistlock, Driven by a Automatic Spring
Flippers Device No Power, Fixed Flippers Flippers Device No Power, Fixed Flippers
Application Portal Crane, Gantry Crane, Crane in the Plant Application Portal Crane, Gantry Crane, Crane in the Plant

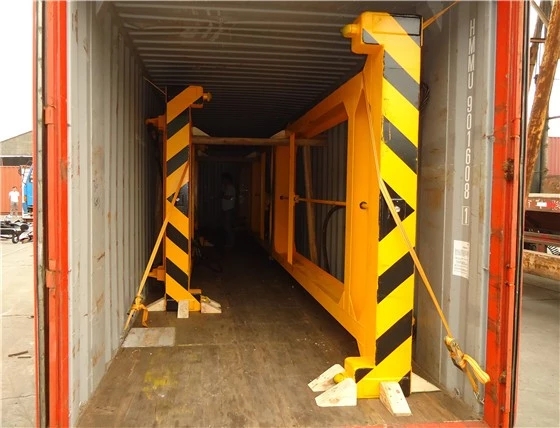

Transportation
Long Life Color Customized Gantry Crane Spreader According ISO Standard



Our certification
